Galvanized Storage Cage
——
Galvanized treatment, anti-corrosion and anti-oxidation.
— Factory Direct Sales · Customizable —
＞The advantages of steel mesh cages
- It is widely used in the temporary storage and distribution of raw materials, semi-finished products and finished products. It can not only realize three-dimensional loading, unloading, storage and transportation carriers, but also can be used as a turnover container for materials, which can be mechanically handled to reduce costs and improve efficiency.
- Surface treatment: galvanized, not easy to wear, corrosion resistance, long service life.
- Uniform specifications, fixed capacity, clearly visible storage
- Self-stacking storage, three-dimensional storage; empty cage can be folded to save space
- The high-quality cold-drawn steel wire is butt welded, and the bottom is reinforced by U-shaped steel welding, and the structure is sturdy
- The storage cage is matched with cardboard to protect the stored items from scratching the surface
Our company has always insisted on the road of "science and technology will prosper the enterprise", and constantly introduced international advanced production equipment. At present, we have 2 automatic welding production lines with robotic arms for standing pallets and 1 semi-automatic welding production line with robotic arms for steel bins. At the same time, our company highly focuses on the development of independent intellectual property rights, improve production capacity, has developed into one of the most professional manufacturers of steel pallets Storage Cage.
Product Specification Sheet
| Odel | Outer Dimensions Length × Width × Height | Grid | Wire Diameter | Capacity | Load Bearing | Surface Treatment |
| mm | mm | mm | m3 | Kg |
| A3 | 800×600×640 | 50×50 | 6.0(5.8) | 0.22 | 800 | Galvanization |
| C3 | 800×600×640 | 100×100 | 5.0(4.8) | 0.22 | 300 | Galvanization |
| A5 | 1000×800×840 | 50×50 | 6.0(5.8) | 0.52 | 1200 | Galvanization |
| C5 | 1000×800×840 | 100×100 | 5.0(4.8) | 0.52 | 500 | Galvanization |
| A7 | 1200×1000×890 | 50×50 | 6.0(5.8) | 0.84 | 1500 | Galvanization |
| C7 | 1200×1000×890 | 100×100 | 5.0(4.8) | 0.84 | 500 | Galvanization |
Size, color, thicknessall can customized bycustomer requirement.
Product structure
—
- The foot structure of the mechanical principle can be placed in a plane and stacked in a three-dimensional manner, which is convenient for forklifts, pallet trucks, and storage cage trolleys to carry, load and unload.
- The non-slip stopper can ensure that the upper storage cage does not fall forward when stacked, ensuring safety.
- The reinforced hinge protects the helical hinge to prevent it from being stretched out during storage.
- Storage cage latches protect the safety of material stacking.Humanized handle design, natural operation.
- The spiral hinge ensures free folding, convenient opening and closing, and avoids the problem of jamming.
- The bottom grid is welded with U-shaped channel steel to ensure sufficient bearing capacity and firm strength of the storage cage.
Storage Cage · ASRS · Made In China
Install Steel Pallets For ASRS
—
Storage Cage · ASRS · Made In China
Install Trailer Traction And Casters
—
Storage Cage · ASRS · Made In China

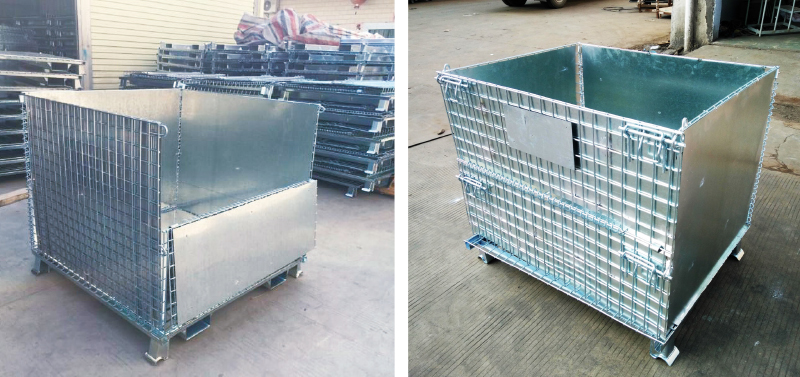

Inside Iron Plate
—
Storage Cage · ASRS · Made In China

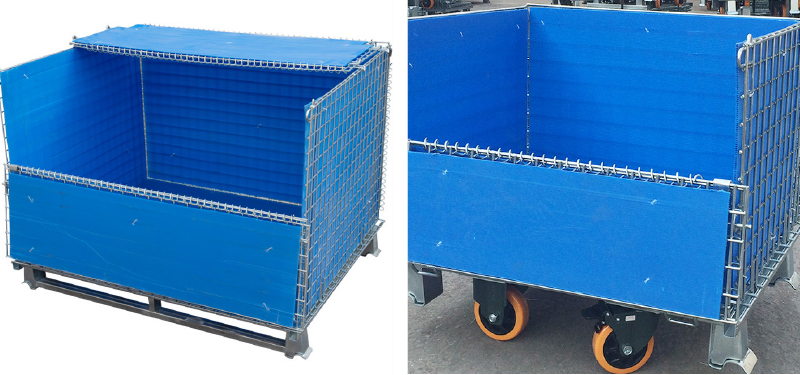

Install A Hollow Board
—
- U-shaped foot design, increase stacking stability, three-dimensional storage.
- U-shaped buckle design, accurate positioning and welding, easy to use.
- Spiral hinge design, flexible disassembly, avoid jamming.
Storage Cage · ASRS · Made In China

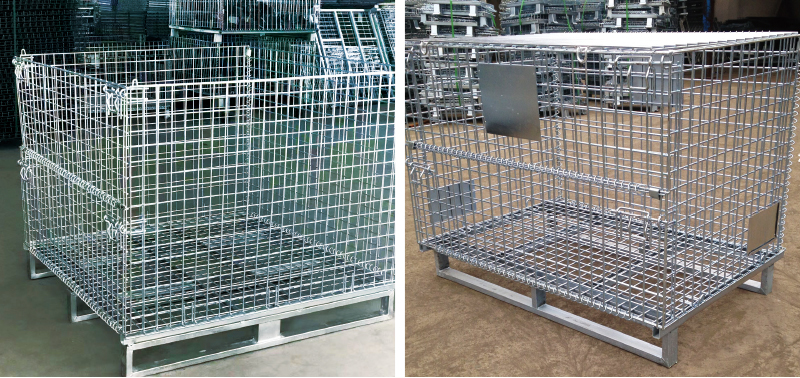

Add Cover Net On Top
—
Storage Cage · ASRS · Made In China
Middle add into Mesh board
—
Storage Cage · ASRS · Made In China

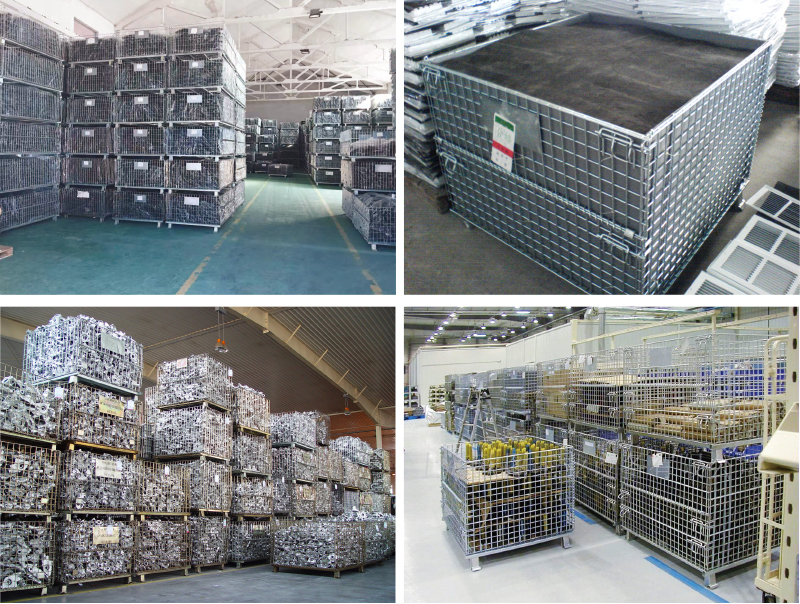

CASE
—
Storage Cage · ASRS · Made In China

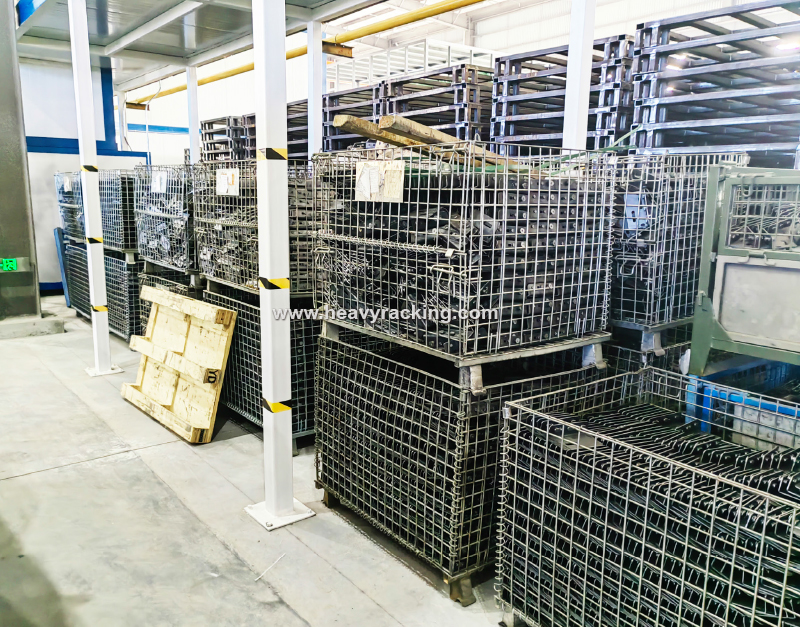

FACTORY SCENE
—
Storage Cage · ASRS · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
